Problem & Solution
Modern smartphones and lightweight laptops frequently eliminate the 3.5mm headphone jack or rely on low-cost internal audio processing circuitry. This leaves listeners unable to connect standard wired headphones directly, or subjects them to reduced sound clarity, lower dynamic range, and background electronic noise.
The HiBy Digital D1 Type-C HiFi Audio Dongle acts as a dedicated external sound card, combining a Digital-to-Analog Converter (DAC) and headphone amplifier in a portable cable design. By converting digital audio signals outside the host device using specialized hardware, it restores 3.5mm analog connectivity while processing high-resolution audio streams up to 32Bit/384kHz.
Who Is It For?
This portable USB-C audio dongle is intended for users who want to connect wired headphones or in-ear monitors (IEMs) to Android smartphones, tablets, or Windows 10 computers. It appeals to listeners seeking hardware-level decoding for high-resolution audio files without carrying bulky external amplifiers.
Key Features

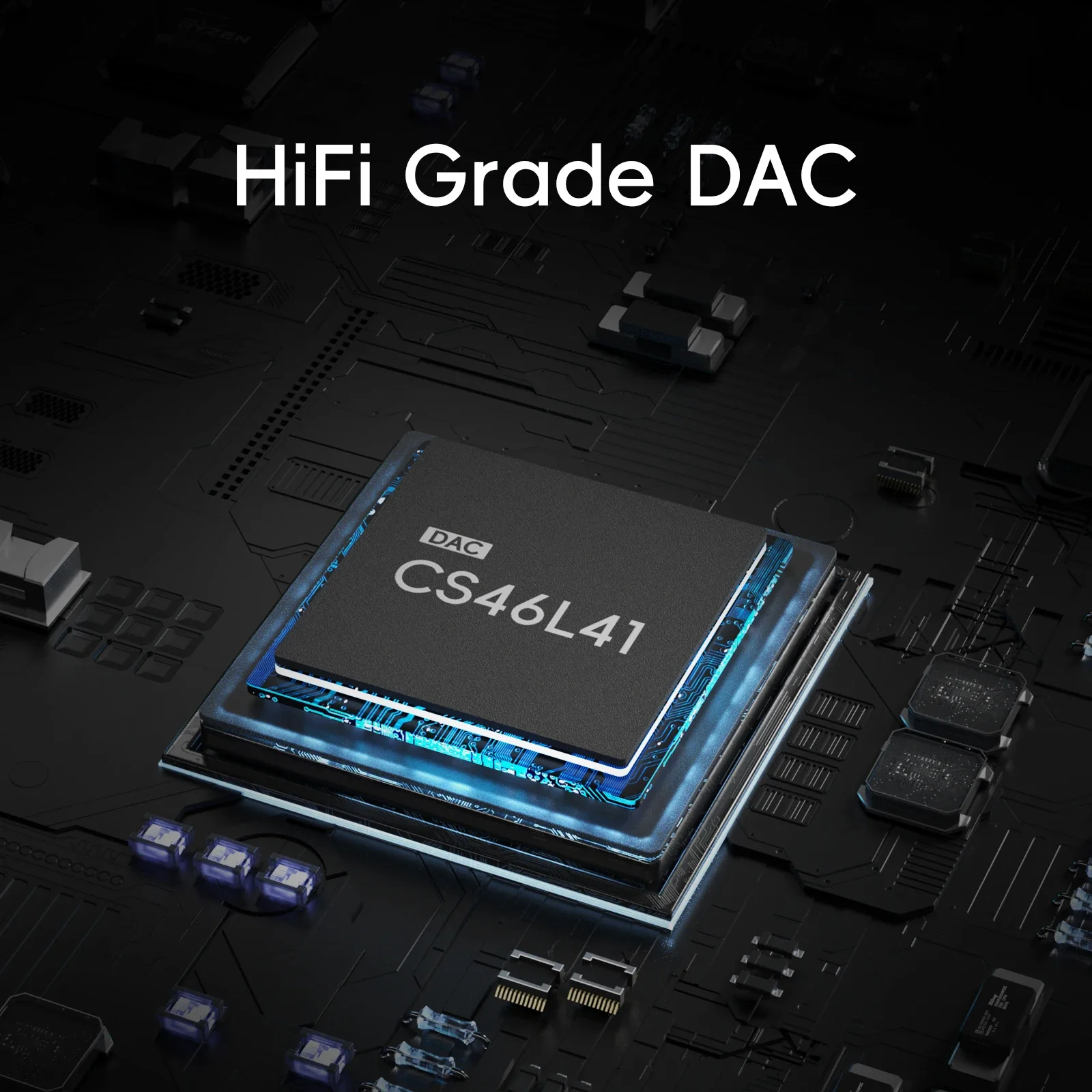

- Cirrus Logic CS46L41 DAC ChipDelivers dedicated hardware processing for digital-to-analog audio conversion with reduced distortion.
- 32-Bit / 384kHz PCM DecodingSupports high-resolution digital audio sampling rates to preserve precise signal details.

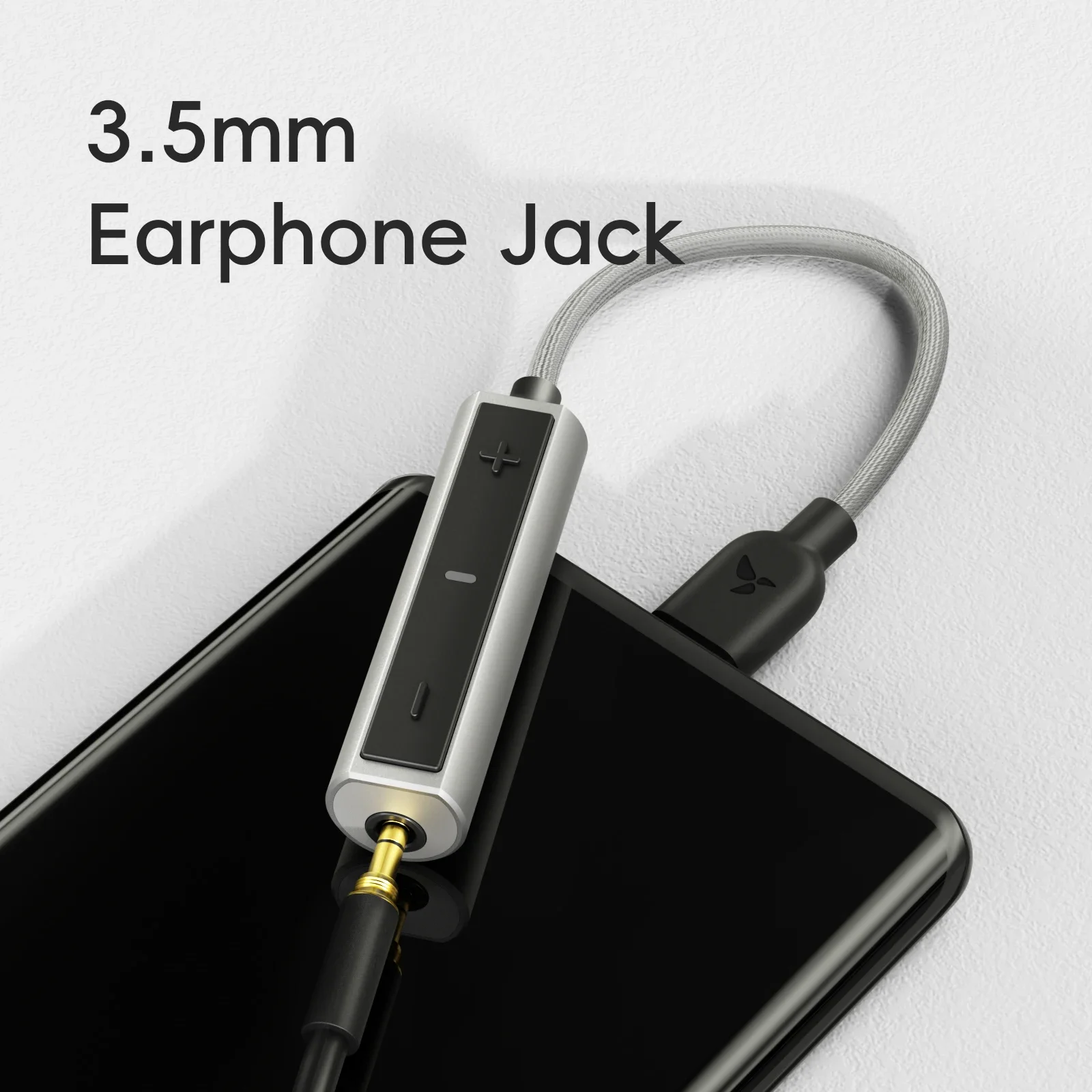

- 3.5mm Stereo OutputRestores traditional wired analog headphone connections for standard earphones and IEMs.
- USB Type-C Host ConnectionConnects directly to modern Android mobile devices and Windows 10 systems without needing power adapters.
- Bus-Powered OperationDraws minimal power directly from the connected source device, eliminating the need for internal battery charging.
Technical Specifications
| DAC Chipset | Cirrus Logic CS46L41 |
| Max PCM Resolution | 32-Bit / 384kHz |
| Audio Output Interface | 3.5mm Single-Ended |
| Input / Host Interface | USB Type-C |
| Supported Operating Systems | Android, Windows 10 |
| Power Source | USB Bus Powered |
| Output Power / Load Support | Not specified in available data |
| Inline Microphone / Call Support | Not specified in available data |
Pros & Cons
Pros
- Features a dedicated Cirrus Logic CS46L41 audio decoding chip.
- Handles high-resolution PCM audio files up to 32-bit / 384kHz.
- Direct USB Type-C plug-and-play connectivity for Android and Windows 10.
- Compact dongle form factor ideal for on-the-go media playback.
Cons
- Output power (milliwatts into specific impedance loads) is not specified in official data.
- Does not feature hardware physical volume buttons on the dongle body.
- Limited to single-ended 3.5mm output; balanced connections (2.5mm/4.4mm) are not supported.
FAQ
No, it receives power directly from the host device via the USB Type-C port during operation.
The HiBy Digital D1 supports PCM format audio decoding up to 32-bit resolution and a 384kHz sampling rate.
Yes, technical documentation lists explicit compatibility with Windows 10 as well as Android operating systems via USB Type-C.
The official product specifications explicitly confirm PCM support up to 32Bit/384kHz; native DSD decoding parameters are not specified in available data.
Final Verdict
The HiBy Digital D1 is a practical audio accessory for users needing a direct USB-C to 3.5mm adapter backed by dedicated CS46L41 decoding hardware and 32Bit/384kHz PCM support. Skip this model if you require balanced outputs (4.4mm/2.5mm) or onboard physical controls. Verify source device OTG audio compatibility prior to purchase.
